Key Features:
Zero-Install Web UI: Hosted directly on the device.
Live Register Data Parsing: Instantly translates raw data streams using stock and user customized JSON descriptors.
Sequencing Macro Tool: Automate read/write cycles without coding.
Universal Compatibility: Available for Windows, Linux, and macOS (Select your preferred USB Device type).
Premium Hardware: Housed in a durable, sleek aluminum enclosure with a clear, explanatory label printed.
⚠️ Founder Edition: This limited first-production run includes an exclusive EthLinx engineer's coaster set. Available while supplies last.
Hardware Testing, Frictionless.
The EthLinx I2C completely redefines how engineers and lab technicians interact with the I2C bus. By combining robust industrial hardware with an intelligent, onboard web server, we have eliminated the need for heavy logic analyzer software and complex Python scripting.

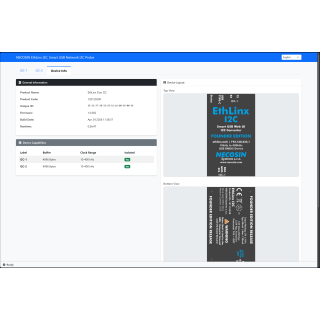

Your Toolbox, In the Browser

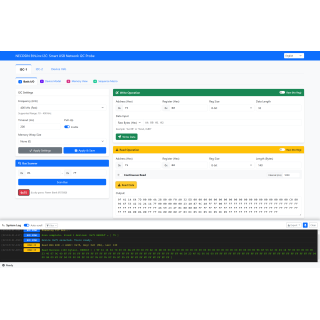

The entire control interface is hosted directly on the device. Simply plug the EthLinx into your computer via USB and open your standard web browser. You instantly have full-featured read and write access to your I2C bus, providing pure, low-friction debugging in seconds.

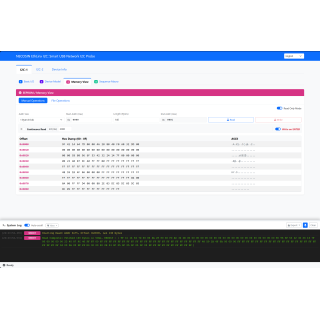

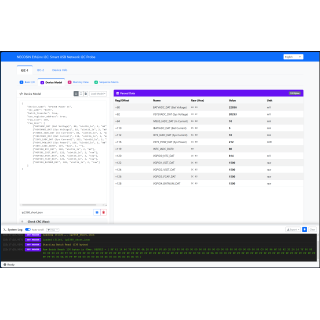

Live Registers Data Parsing & Data Logging
Stop manually decoding raw hex dumps. The dynamic Web UI features an onboard JSON parser that instantly translates incoming data streams into human-readable formats. Monitor live sensor telemetry, identify protocol errors on the fly, and export full transaction logs with a single click for offline analysis.

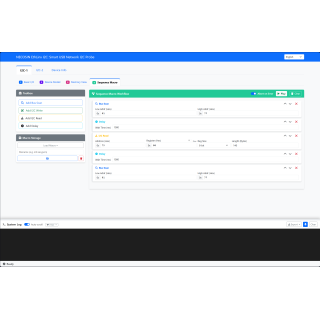

Automated Sequences. Zero Coding.
Transform repetitive test cycles from hours into minutes. The built-in Sequencing Macro Tool lets you build, save, and execute custom read/write cycles with exact delays. Achieve fully automated firmware verification and hardware testing directly from the UI, without writing a single line of code.
Founder Edition Run
To celebrate the official release of the EthLinx I2C, the very first batch is marked as the "Founder Edition." These limited units ship with a complimentary set of custom EthLinx lab coasters. It is a fully polished, rock-solid product ready for your test bench today.
What is in the box:
- 1x EthLinx I2C Smart Toolkit (Black Aluminum Enclosure)
- 1x Terminal Plug-In Insert Block (3.5mm, 3-Position)
- Bonus: Exclusive EthLinx Founder Edition Coaster Set
Features
Host Connection: USB Type-C (Ethernet-over-USB / TCP/IP)
Target Interface: I2C (SCL, GND, SDA)

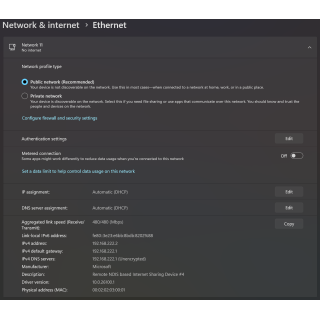

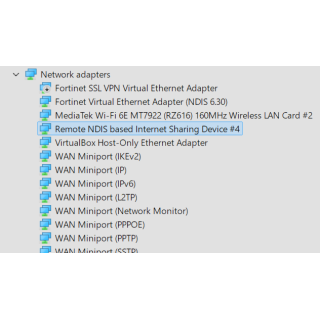

Operating Systems: Select "USB RNDIS" model for Windows (Supported versions: Vista, 7, 8, 8.1, 10, 11). Select "USB CDC-ECM" model for Linux, macOS
Software Requirement: None (Standard Web Browser)
Enclosure: Premium Black Matte Finish Aluminum with anti-slip base
Logic Levels: 3.3V, can be switched to 5V by an internal hardware jumper
I2C Clock Speed: User selectable from 10 kHz to 400 kHz
